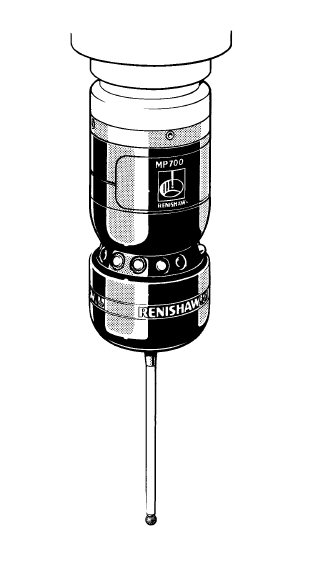

The MP700 is an optical transmission part probing system for
use on machining centers. The MP700 is specifi cally designed to
deliver high-accuracy CMM type probe performance. The MP700
uses strain gage sensors and and an internal microprocessor to
provide a solid state sensor mechanism with unprecedented life
and reliability. Low trigger force and consistent pre-travel results
in high accuracy with long styli.
The MP700 is available with either 35° or 70° output. An M code
must be supplied to turn the probe on. An internal timer or M
code is used to turn the probe off.
Sense directions ±X, ±Y, +Z
Stylus overtravel
X and Y: ±16.5°
Z: 11 mm (0.45 in)
Stylus trigger force
(factory set using 50 mm stylus)
X and Y: 2 gf
Z: 15 gf
Unidirectional repeatability
(max 2 sigma value)
0.25 μm (0.00001 in)
