Ultrasonic Thickness Gauge
Click image to enlarge

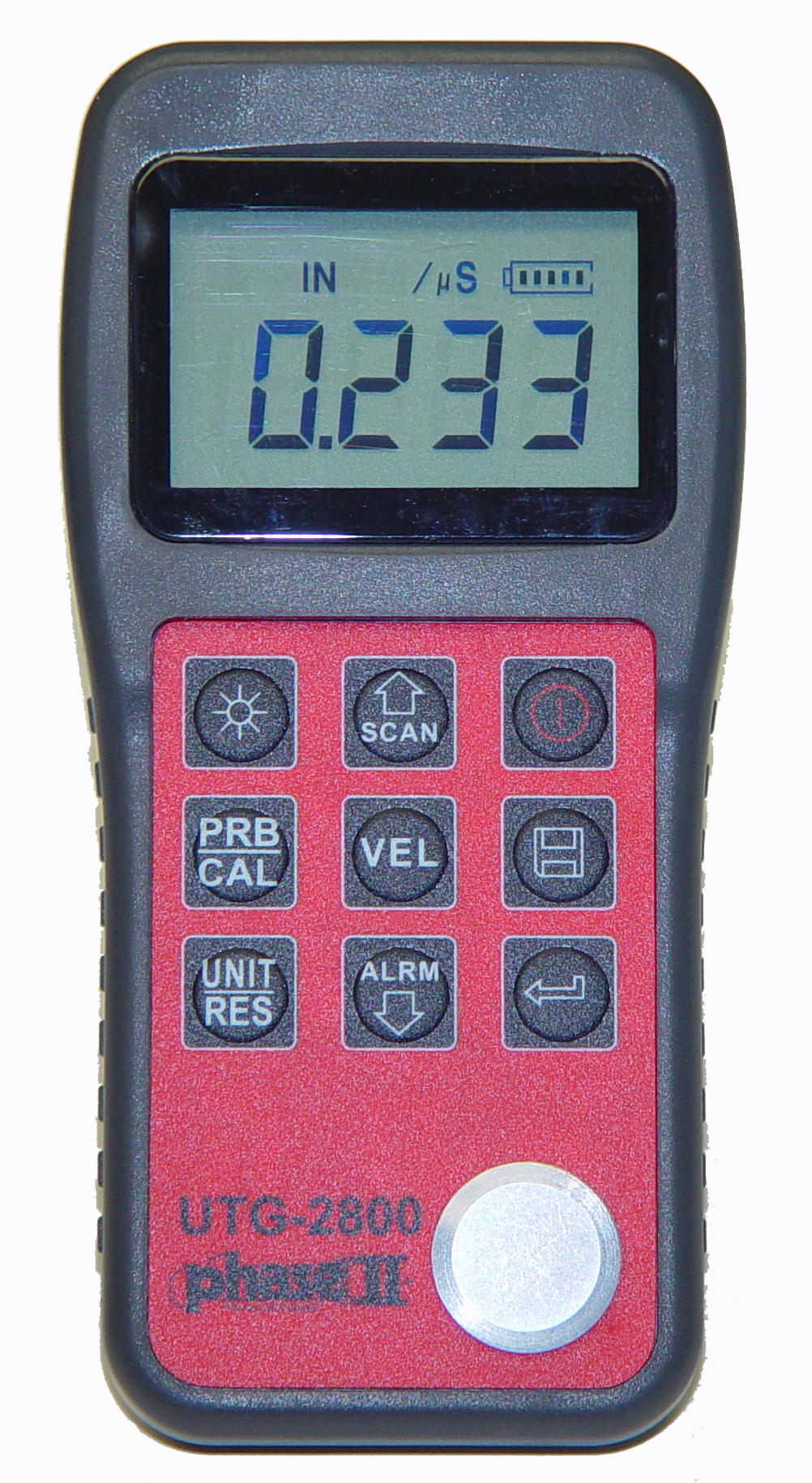

Ultrasonic Thickness Gauge

Model Number: [UTG-2800]
Manufacturer: Phase II+

$795.00

This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces.

5 Year Warranty

Product Features:

SPC Output: USB Output
Measuring Range: 0.02-12.0” in steel w/standard probe
LCD Resolution: 4-digit LCD w/Back Light
Range Resolution: 0.001”/0.01mm (selectable)
Accuracy: +/- (0.5% thickness + .001”)
Power Supply: 3v AA alkaline batteries (2pc)
Operating Temperature: 32-122 degrees F
Measuring Velocity: 3280-32805 ft/s (1000-9999m/s)
For more information, please visit this product's web page.
