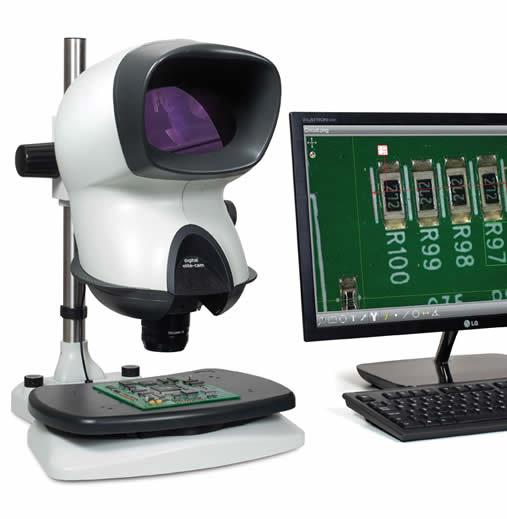

The latest update in the popular Mantis stereo microscope range. Combining the ergonomic benefits of unique eyepiece-less technology with the imaging power of an HD camera, Mantis Elite-Cam HD is the ideal solution for inspection, reworking and reporting.

• 2x - 20x magnification


• Fully integrated HD camera with USB connection


• Unique 3D stereo view and useful annotation software


• Computer available as optional upgrade

The COMPLETE SOLUTION for low magnification inspection, manipulation and documentation tasks.

Mantis Elite-Cam HD is comprised of a standard Mantis Elite 'eyepiece-less' stereo microscope, with a factory integrated HD digital camera, offering truly superb 3D imaging plus the flexibility and convenience of digital image capture.

Winner of numerous industry design awards, the outstanding ergonomic design of Mantis allows your eyes and hand to work together naturally, eliminating user fatigue, improving efficiency and productivity for any precision task requiring magnification.

This system comes complete with great software to allow you to carry out easy-to-use image archiving and annotation. Advanced software for dimensioning and simple measurement is available as an upgrade.

Highlights

• Unique eyepiece-less design
• Unrivaled depth perception and 3D view
• Unbeatable ergonomics for increased productivity
• 2x – 20x optical magnification options (two position quick change turret)
• Factory integrated HD USB2.0 camera
• Complete with great image capture and mark-up software
• Powerful DimensionOne™ imaging and measurement software (optional upgrade)
• Choice of stands and accessories to suit numerous applications

Amazing 3 Dimensional View
The expanded pupil technology of the Mantis Elite Cam HD enables users to move within the optical paths, effectively allowing the user to look around the subject by moving their head. This increases depth perception enabling easier hand eye coordination and natural manipulations.

Effective Software Included
Simple, easy-to-use uEye image and video capture software is included as standard to allow you to quickly get up and running, make annotations and optimize camera settings for your application.

An upgrade to the powerful DimensionOne™ software provides the added benefits of on-screen measurement tools.

uEye and DimensionOne™ are available in all major languages

Fatigue-free Optical Viewing
Patented optical technology of Mantis removes the need for restrictive eyepieces of a conventional microscope, allowing operators freedom of head movement, providing superb ergonomics and hand-eye coordination, plus the ability to wear prescription or safety glasses, if required.

Stand Options

• Universal Stand: Mantis Elite, with counterbalanced universal stand, for flexibility and ease of use.
• Bench Stand: High stability bench stand with integral focus and dimmable substage illumination.
• Articulated Arm: Designed specifically for applications requiring extended reach, without compromising stability. Maximum reach of 34.65" (800mm), with optional Secondary Link.
• Floor Stand: The floor stand (for use with articulated arm) is specifically designed for stereo inspection where subjects are immobile or require a standing position. Mobile and highly stable, the floor stand provides a versatile option for Mantis operators.

Lens Options
Mantis Elite-Cam HD houses 2 objectives in a quick rotate turret, so you can inspect at lower magnification, then switch to higher magnification for detail work.

Objective Lenses: 2X

• Working Distance: 6.30" (160mm)
• Field of View: 2.24" (57.0mm)

Objective Lenses: 4X

• Working Distance: 3.78" (96mm)
• Field of View: 1.34" (34.0mm)

Objective Lenses: 6X

• Working Distance: 2.68" (68mm)
• Field of View: 0.91" (23.0mm)

Objective Lenses: 8X

• Working Distance: 2.32" (59mm)
• Field of View: 0.67" (17.0mm)

Objective Lenses: 10X

• Working Distance: 2.13" (54mm)
• Field of View: 0.53" (13.5mm)

Objective Lenses: 15X

• Working Distance: 1.57" (40mm)
• Field of View: 0.35" (8.8mm)

Objective Lenses: 20X

• Working Distance: 1.14" (29mm)
• Field of View: 0.26" (6.5mm)

Objective Lenses: 6X SLWD

• Working Distance: 4.41" (112mm)
• Field of View: 0.79" (20.0mm)
• *Cannot be used together with 2x or 20x objective lens
